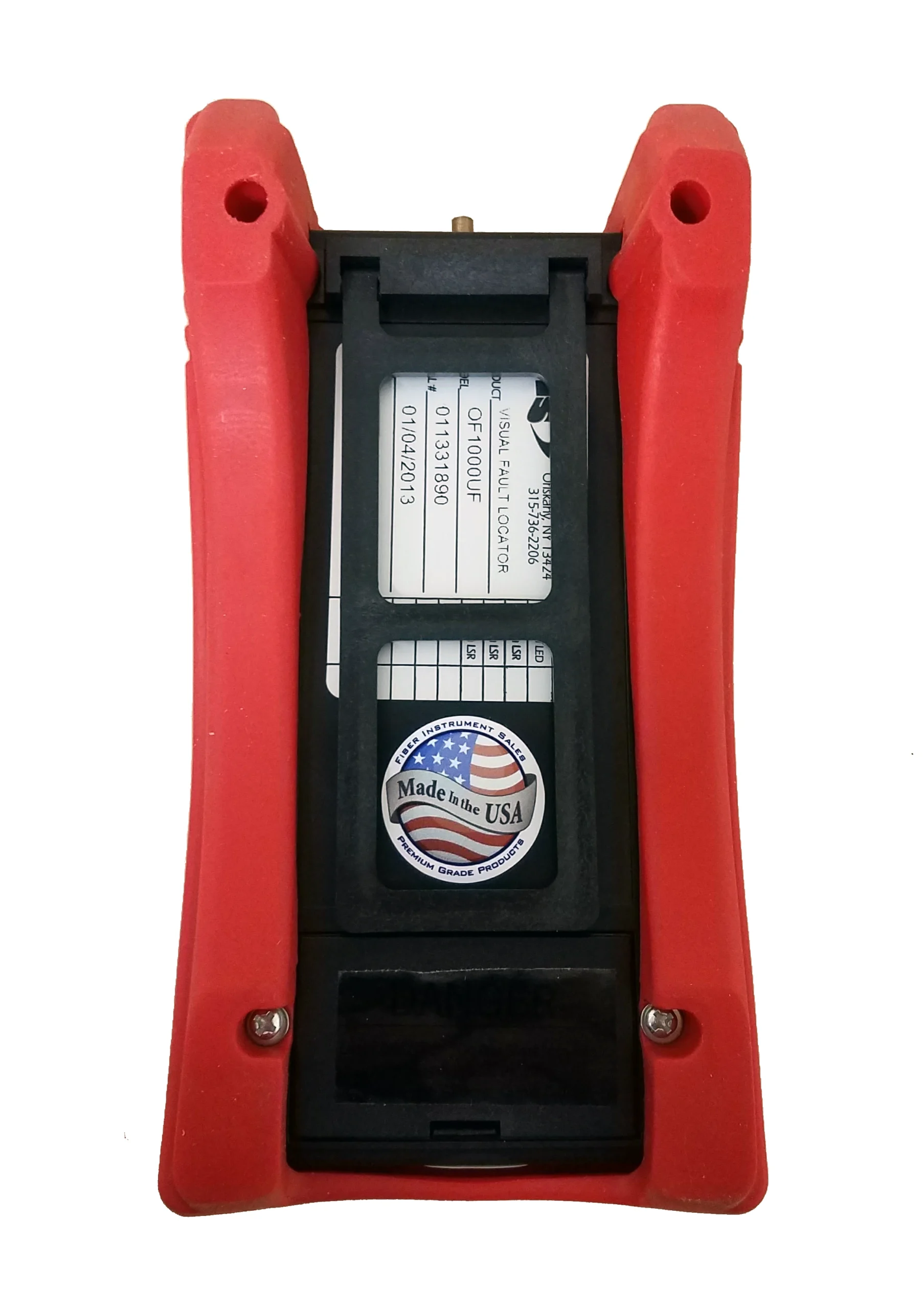

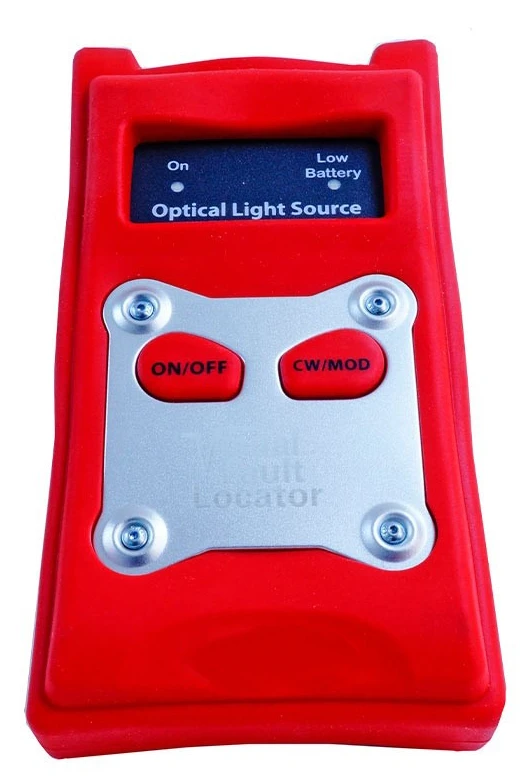

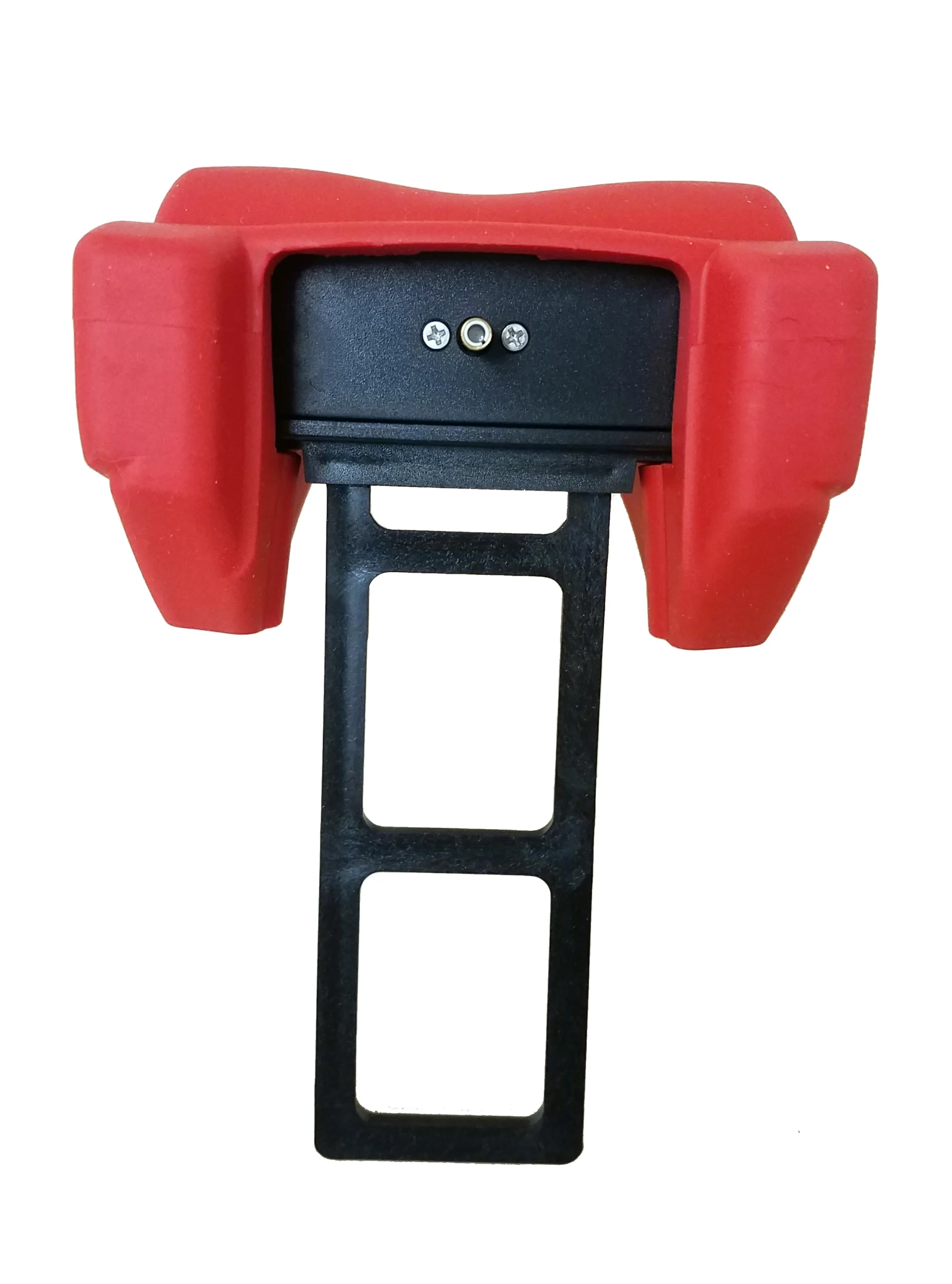

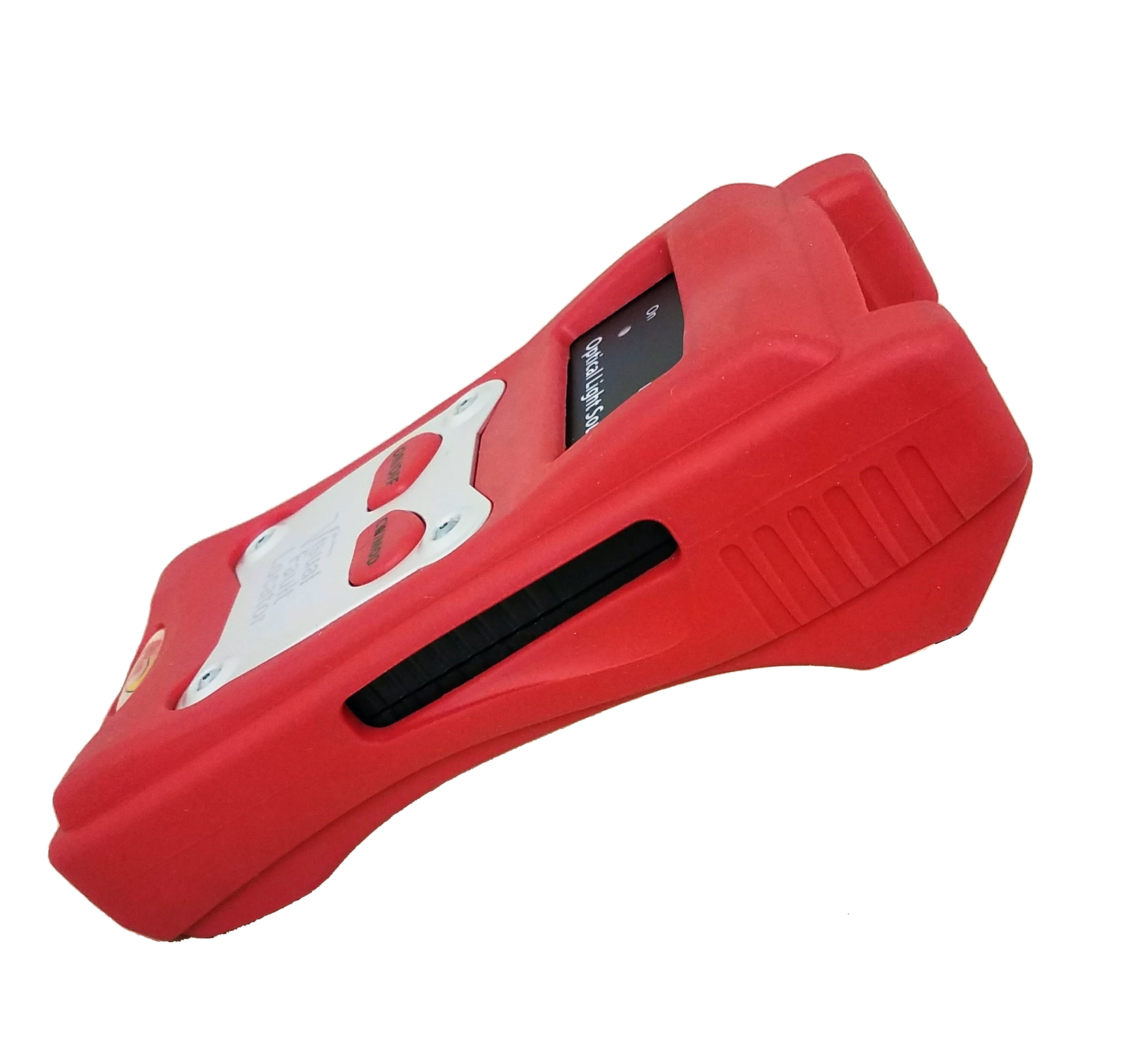

Visual Fault Locator W/ 2.5mm Universal Adapter (Singlemode & Multimode)

Original price was: $351.00.Current price is: $99.99.

Expertly Sourced, Quality Guaranteed

Safe Payments, Secure Personal Information

Quality that lasts, prices that don't.

7 days return and exchange

This Visual Fault Locator is an essential tool for troubleshooting a fiber optic system.

A 1mW fiber coupled laser sends a 650 nm visible red light down the length of the fiber. The escaping light allows easy identification of breaks or severe macro bends.

Internal optics are used to optimize the unit’s performance for either singlemode or multimode applications. Fiber end identification and continuity testing for long distances are also natural applications.

This unit operates with two AA batteries (provided).

Download Products Spec Sheet:

Hand Held Visual Fault Locator Spec Sheet (PDF)

Product Specifications
Output Power	1mW
Wavelength	650nm Typ
Battery	(2) AA
Battery Life (typical)	30 hrs continuous 40 hrs modulated
Pulse Rate	1Hz
Emission Indicator	Power indicator in sync when laser in use
Size	6 1/4″ L x 3 1/4″ W x 1 1/4″ D
Weight	7.5 oz
Operating Temp.	-10 to + 50 Celcius
