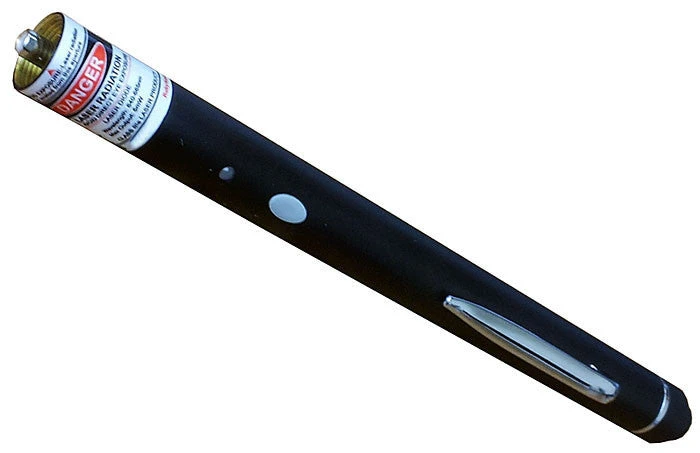

VFL-125 Pen Shape 650nm Laser Diode Visual Fault Locator For 1.25mm Ferrule (LC, MU Connectors)

Original price was: $175.00.Current price is: $99.99.

Expertly Sourced, Quality Guaranteed

Safe Payments, Secure Personal Information

Quality that lasts, prices that don't.

7 days return and exchange

VFL-125 1.25mm Ferrule 650nm Red Laser Diode Visual Fault Locator for LC, MU connectors

Key Features

Mates with 1.2.5mm ferrules including LC, MU connectors
650nm visible laser diode can be operated in continuous or pulsed modes
Mode button cycles among Continuous Wave (CW), Pulsed (2.5Hz) and Paused modes
Locates breaks or excessive bends in fiber optic cables
Durable metal construction
LED status indicator provides on/off and battery status (Green-On, Red-Low Battery)
Clip pocket-sized pen-like design
“Ballpoint pen” style on/off switch on the end
Endcap protects laser unit

Specifications:

Central Wavelength		650 +/- 10nm
Output Power		0.5mW into single mode fiber
Spectral Width		< 10nm
Transmission		Continuous Wave (CW) or 2.5 Hz Pulsed
Power Source		2x AAA Alkaline Batteries (No Included)
Operating Temperature		0 – 50 °C
Detection Distance		< 6 km (3.7 miles)
Dimensions/Weight		170mm x 13.5 mm / 88 grams
Light Source		Class IIIA Laser Diode
