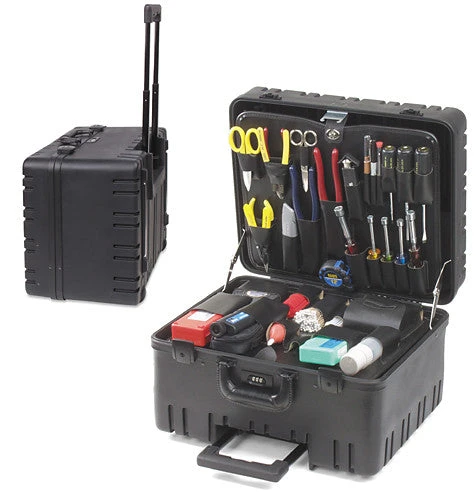

The SP1-SPC35C Fiber Installation Tool Kit comes in a a heavy-duty black polyethylene Roto-Rugged case with an integral luggage cart. It features beefed-up construction, extra-large corners, steel spring-loaded handle and quarter-turn latches.

Low-profile rubber wheels are mounted on the side edge for smooth rolling. The recessed handle collapses flush with the edge. Hardware is hidden under a removable plastic tray in case bottom. Small metal rails on the underside protect the case from stair or curb damage. The 26-pound SPC35C measures 17.5″ x 14.25″ x 8.5″ (inside dimensions).

This specially designed kit features a versatile complement of tools and supplies that meets the multiple fiber optic installation requirements of field engineers. Every item was carefully chosen for universal applications.

Lint-free 5.75″ x 5.75″ wipes with 99% isopropyl alcohol keep fibers clean after stripping and before cleaver insertion.

Use Kevlar cutter with soft handle grips and fine serrated blades to cut and trim Kevlar strength members in fiber optical cable.

Fiber optic stripper with cushion-grip handles removes 250-†µm buffer coating without scratching or nicking 125-†µm optical fiber. Cutting surfaces are precision formed, hardened, tempered and ground.

View multimode connectors with Ideal’s 100X fiber inspection microscope. Oblique illumination provides an excellent view of ferrule cleanliness and overall core condition. It features precision glass optics, built-in laser safety filter and 100,000-hour white LED.

CLETOP’s specially formulated 2µm fiber weave dry cloth is the fast, easy and economical way to clean 2.5mm and 1.25mm ferrules on a multiple connectors. Replaceable tape swipes each connector twice, lifting dirt off over 400 connectors.

Tools carry lifetime warranties; the case has a one-year warranty.

Tool Kit Contents:
