Precision Rated Optics 850/1300nm Multimode Laser Light Source With Auto-Wavelength Recogn

Auto-Wavelength Recognition

LS2 units can transmit with a wavelength-identification digital encrypted protocol, enabling the PM2 Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.

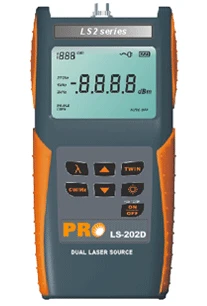

The LS series offer excellent stability and portability for accurate fiber optic testing. Single output port provides stable laser power at dual wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated mode. The output power is adjustable through up & down keystroke. A low battery indicator reminds the user of recharging the battery

Features:

Easy-to-use, straight forward operation

Eye-catching handheld package

LCD backlight for easy operation in darker environments

†ñ3dB Adjustable by the user.

Rechargeable battery inside

850 & 1300 availale for multimode testing

Three-year warranty and recommended calibration interval.

LS2 units can transmit with a wavelength-identification digital encrypted protocol, enabling the PM2 Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.

The LS series offer excellent stability and portability for accurate fiber optic testing. Single output port provides stable laser power at dual wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated mode. The output power is adjustable through up & down keystroke. A low battery indicator reminds the user of recharging the battery

Download Spec Sheet:

LS-203D Multimode Laser Source PDF Spec Sheet

Specifications:

†	LS-202D	LS-203D
Output wavelength (nm)	1310 & 1550	850 & 1300
Emitter Type	LD
Output stability	Short Term (15 min.): < †ñ0.05dB @1310,1550nm; †ñ0.1dB@850 & 1300† Long Term (8 Hours ): < †ñ0.1dB @1310,1550nm;†ñ0.2dB@850 & 1300
Central Wavelength	1310†ñ20nm & 1550†ñ20nm	850†ñ10nm & 1300†ñ20nm
Spectral Width	5 nm
Connector	FC/PC, SC/PC, ST/PC interchangeable connectors( APC is available at the time of ordering)
Output Frequency (Hz)	270, 1K, 2K
Output Power	– 5 dBm
Adjustable Range	†ñ3dB, 0.1dB/step
Auto Power-off	Yes
Back-light	Yes
Operating Temperature	-10 to +50
Storage Temperature	-20 to+70
Power supply	2pcs * Ni-MH AA(2500mAh)
Dimension (mm)	160L*76W*45H
Net Weight	270 g

Standard Accessories:

• FC/PC, SC/PC, ST/PC interchangeable connector
• Carrying Bag
• User Manual
• Worldwide compatible AC/DC power adaptor
• Battery
• Test report

Optional Accessories:

• FC/APC Connector
• SC/APC Connector
• Aluminium Carrying Box
