Auto-Wavelength Recognition
LS2 units can transmit with a wavelength-identification digital encrypted protocol, enabling the PM2 Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.

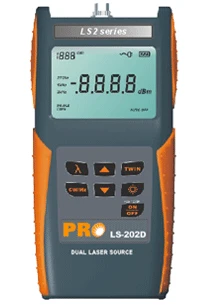

The LS series offer excellent stability and portability for accurate fiber optic testing. Single output port provides stable laser power at dual wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated mode. The output power is adjustable through up & down keystroke. A low battery indicator reminds the user of recharging the battery

Features:

Easy-to-use, straight forward operation
Eye-catching handheld package
LCD backlight for easy operation in darker environments
†ñ3dB Adjustable by the user.
Rechargeable battery inside
850 & 1300 availale for multimode testing
Three-year warranty and recommended calibration interval.

LS2 units can transmit with a wavelength-identification digital encrypted protocol, enabling the PM2 Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.

Download Spec Sheet:

Download PDF spec sheet here

Specifications:

	LS-202D	LS-203D
Output wavelength (nm)	1310 & 1550	850 & 1300
Emitter Type	LD
Output stability	Short Term (15 min.): < †ñ0.05dB @1310,1550nm; †ñ0.1dB@850 & 1300 Long Term (8 Hours ): < †ñ0.1dB @1310,1550nm;†ñ0.2dB@850 & 1300
Central Wavelength	1310†ñ20nm & 1550†ñ20nm	850†ñ10nm & 1300†ñ20nm
Spectral Width	5 nm
Connector	FC/PC, SC/PC, ST/PC interchangeable connectors( APC is available at the time of ordering)
Output Frequency (Hz)	270, 1K, 2K
Output Power	– 5 dBm
Adjustable Range	†ñ3dB, 0.1dB/step
Auto Power-off	Yes
Back-light	Yes
Operating Temperature	-10 to +50
Storage Temperature	-20 to+70
Power supply	2pcs * Ni-MH AA(2500mAh)
Dimension (mm)	160L76W45H
Net Weight	270 g
