OTDR Launch Box Type #2 – 1500 Meters Max.
Original price was: $365.00.$95.99Current price is: $95.99.
- Expertly Sourced, Quality Guaranteed
- Safe Payments, Secure Personal Information
- Quality that lasts, prices that don't.
- 7 days return and exchange

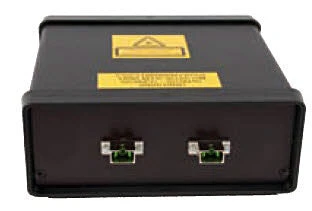

This 5.5″ x 7.5″ x 1.5″ pulse suppressor (launch box) holds up to 1500 meters fiber (50/125µm and 62.5/125µm multimode fiber, 9/125µm single mode fiber or others) and two high quality polished adapters of your choice.
There are two adapters on the front panel, one for input and one for output. Both adapters are high quality polished to your specification to minimize reflections when connected to the OTDR and fibers under test.
Fiber types available:
- 9/125µm SMF-28e+ OS2 Single Mode
- 62.5/125µm OM1 Multimode
- 50/125µm OM2 multimode
- 50/125µm Corning ClearCurve OM3 Bend Insensitive 10G Multimode
- 50/125µm Corning ClearCurve OM4 Bend Insensitive 10G Multimode
- Or other types you specify.
Fiber Length:
up to 1500 meters
Input and Output Pigtail Connector Type:
- FC/UPC
- FC/APC
- ST/PC
- LC/UPC
- LC/APC
- MU/UPC
- SC/UPC
- SC/APC
- Or other
Download Product Spec Sheet:
-
PS-2 OTDR Launch Box Type #2 Spec Sheet (PDF)
| Choose Fiber Type: | 9?‘m OS2 Single Mode, 9?‘m ClearCurve SM ZBL Bend Insensitive, 62.5?‘m OM1 Multimode, 50?‘m OM2 Multimode, 50?‘m OM3 10G Multimode Bend Insensitive, 50?‘m OM4 10G Multimode Bend Insensitive |
|---|
