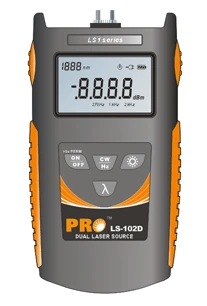

Mooseline 850/1300nm Multimode Laser Light Source

The LS series offer excellent stability and portability for accurate fiber optic testing. Single output port provides stable laser power at dual wavelength. The compact unit operates in either continuous wave (CW) mode or modulated mode. A low battery indicator reminds the user of replacing the battery.

LS1 series are designed for any budget. It can meet the the basic demands of field testing and the field engineers are pleased with the size and weight.

Spec Sheet:

Download LS-103D Laser Source Spec Sheet



Specifications:

†	LS-102D	LS-103D
Output wavelength (nm)	1310 & 1550	850 & 1300
Emitter Type	LD
Connector	FC/PC
Output stability	Short Term (15 minutes): <0.1dB† Long Term ( 5 Hours or above): <0.2dB
Central Wavelength	1310†ñ20nm & 1550†ñ20nm	850†ñ10nm & 1300†ñ20nm
Spectral Width	5 nm
Output Frequency (Hz)	270, 1K, 2K
Output Power	– 5 dBm
Auto Power-off	Yes
Back-light	Yes
Operating Temperature	-10 to +50
Storage Temperature	-20 to+70
Power supply	Li-ion Battery ; 5V AC/DC Adaptor
Dimension (mm)	115L*65W*30H
Net Weight	140 g

Standard Accessories:

• FC/PC connector (SC/PC, ST/PC, FC/APC, SC/APC Optional)
• Carrying Bag
• User Manual
• AC/DC power adaptor
• Test report
