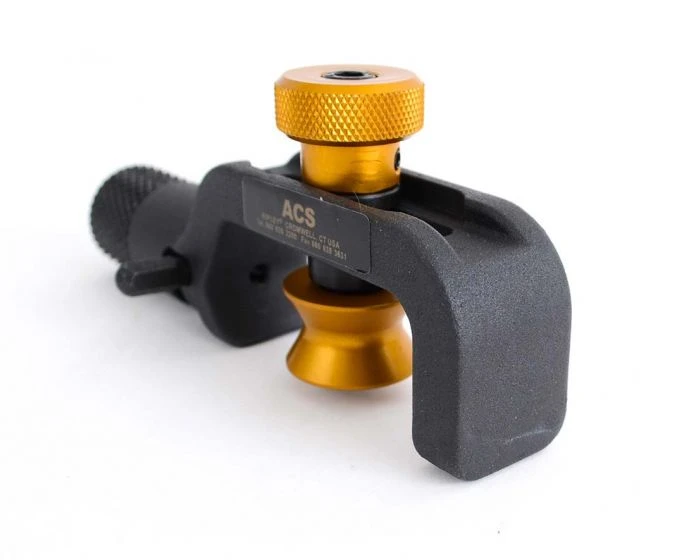

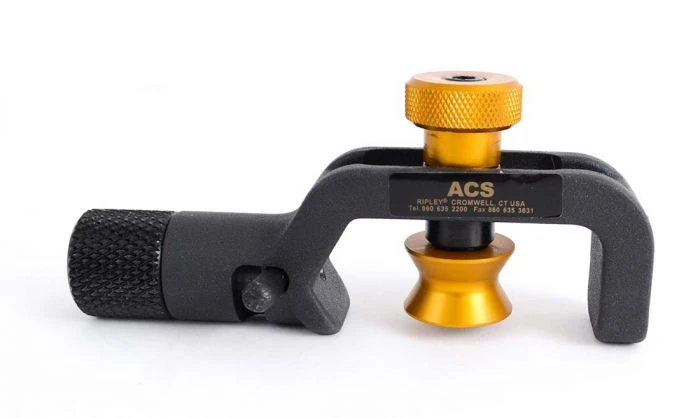

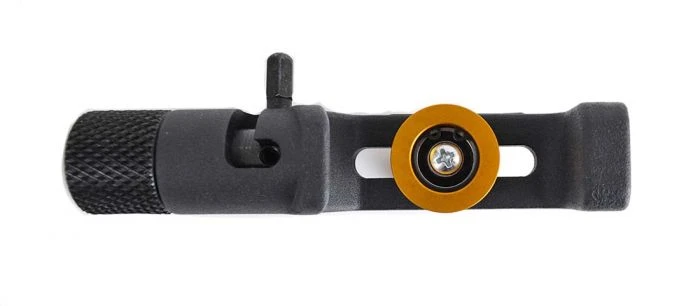

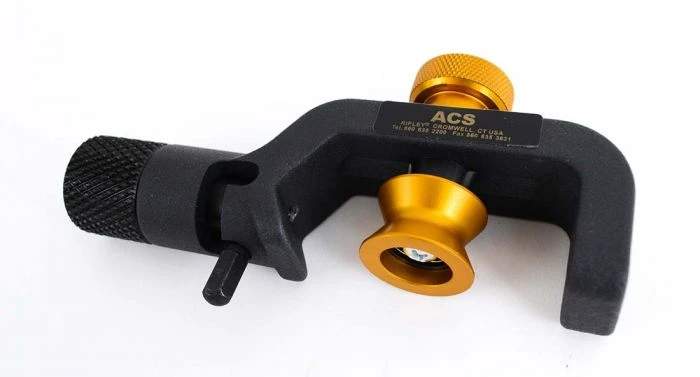

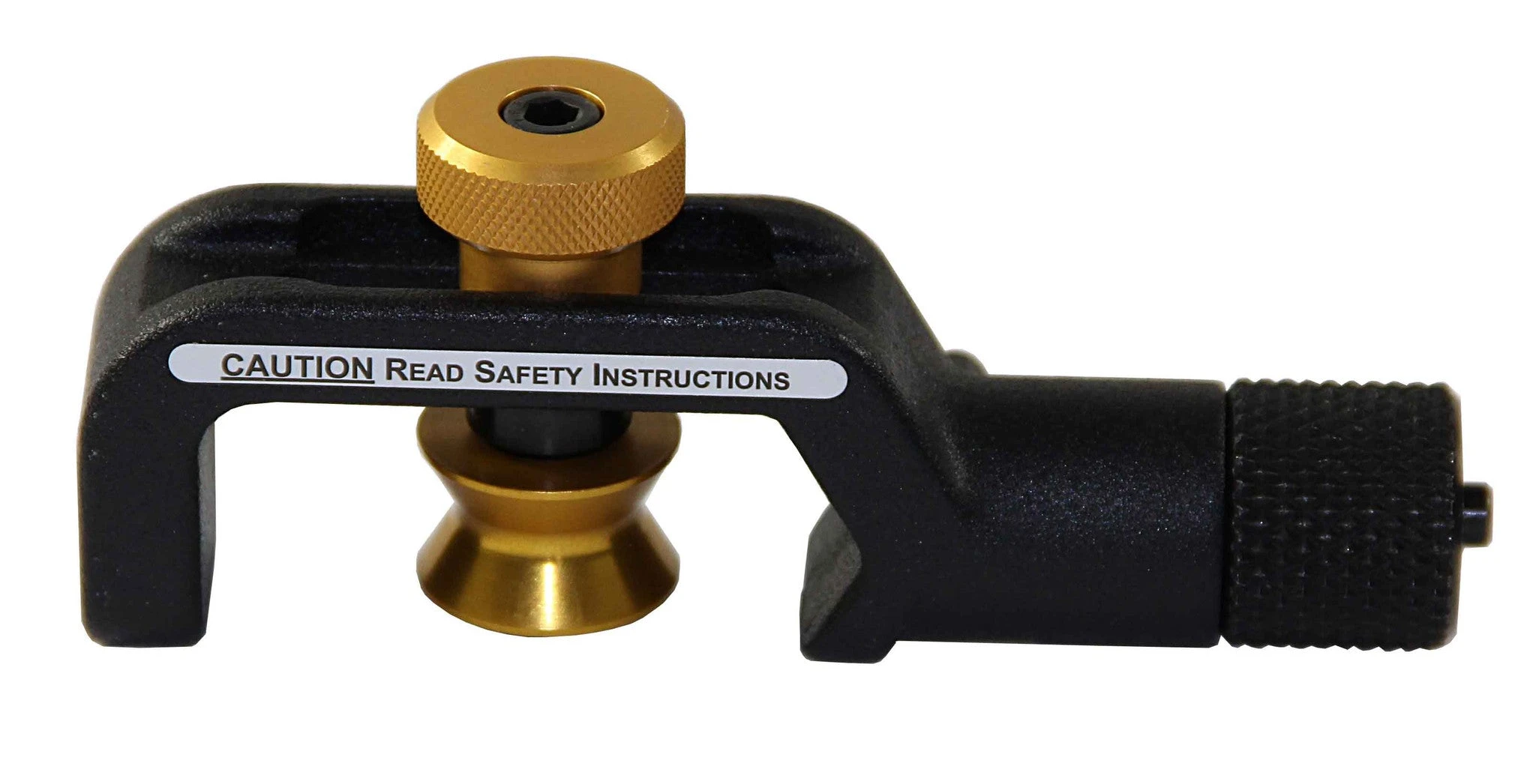

Miller Armored Cable Slitter – Adjustable From 8mm To 28.6mm In Diameter

This is a professional grade cable slitter ideal for slitting the corrugated copper, steel or aluminum armor layer on Fiber Feeder, Central Tube, Stranded Loose Tube fiber optic cables and other armored cables.

This tool slits outer polyethylene jacket and armor in one operation and can perform longitudinal slitting and circumferential(ringing) for end stripper. The blade rotates 9°by activating blade lever, allowing easy mid-span preparation (ringing and slitting).

Features Include:

• Versatile design allows jacket or shield slitting on non-fiber optic configurations as well
• Tool slits outer polyethylene jacket and armor in one operation.
• Performs longitudinal slitting and circumferential (ringing) for end stripping
• Blade rotates 90 degrees by activating blade lever, allowing easy mid-span preparation (ringing and slitting)
• Adjustable from 0.315(8 mm) to 1.125(28.6 mm) cable O.D.
• Adjustable blade depths to accommodate different cable coverings
• Roller style cable follower provides cable stability and allows for easier tool movement along the cable
• Rugged anodized aluminum and steel construction
• Replacement blade: F1-CB251K

Product Sheet:

• Spec Sheet
