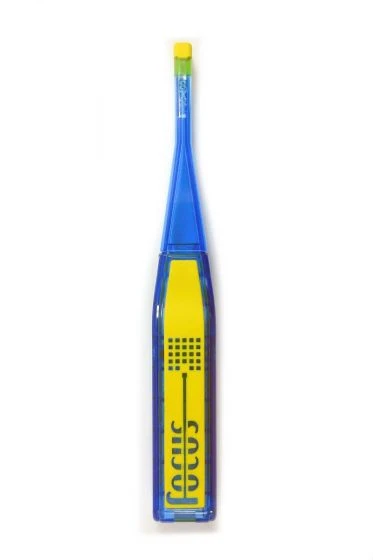

The FOCUS fiber optic connector removal tool (from Cable Prep) can insert and remove SC and LC fiber optic connectors without disturbing adjacent connectors, even when working densely populated fiber optic patch panels.

The FOCUS fiber optic connector removal tool is specially designed for servicing high-density patch panels in Central Office, FTTP, and OSP applications, the FOCUS tool makes it easy to insert and remove a small-form-factor (SFF) connector without disturbing adjacent connections. Its patented design makes it truly unique in the industry.

The FOCUS tool works with SC, SC2, MU, LC, and MTRJ connectors and different cables, including 2mm, 3mm, 1.6mm, jacketed, and 900um buffered cables. It is designed for accessing high-density patch panels – including those having 144 or more ports – and SFF connectors.

Features

Eliminates disturbing delicate fiber optic cables
Inserts and removes SC, SC2, MU, LC, and MTRJ connectors
Features an integrated flashlight
Fits comfortably in either hand
Carries a lifetime warranty on the body
Patented design means the FOCUS tool capabilities are only available from Cable Prep!

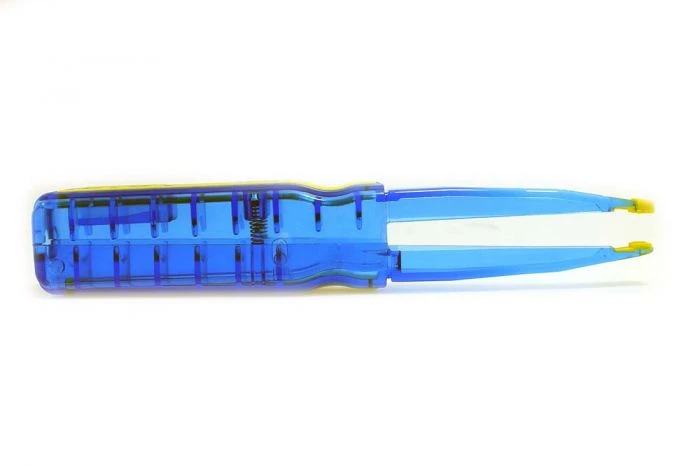

Long, Narrow Jaws

Long, narrow patented jaws facilitate insertion and removal of connectors without disturbing adjacent cables, even when working on densely populated panels. This ensures uninterrupted service on neighboring channels and eliminates unnecessary stress on delicate fibers.

An Ergonomic Design

The tool body is comfortable to hold and easy to navigate with either hand. It is designed for one-handed operation and accomodates both large and small hands. Because the spring-loaded jaws are long and tapered, they easily reach the back of patch panel enclosures. The tool design prevents pinching the operator’s hand when opening or closing the jaws.

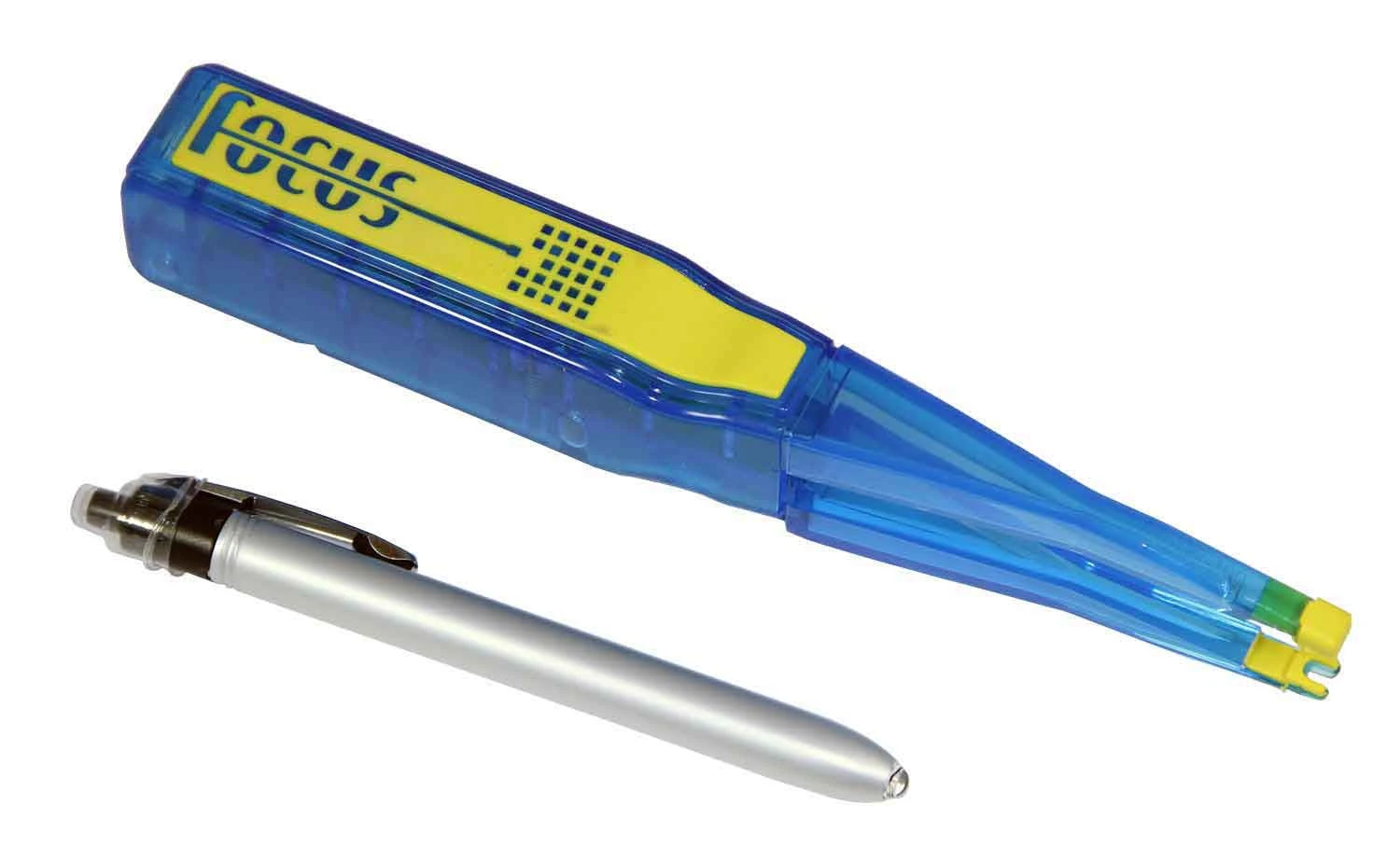

An Integrated Flashlight

A patented removable flashlight improves visibility while navigating through a congested enclosure. The light illuminates individual ports and connectors on the panel as well as the tool tips, which allows the tool to be used in low-light situations. The two standard AAA batteries can be easily changed in the field.

Universal Tips

Made of specially formulated material, the patented tips of the tool provide a firm grasp on small-form-factor connectors. The jaws support the cable to keep it from bending and protect the delicate fibers within.

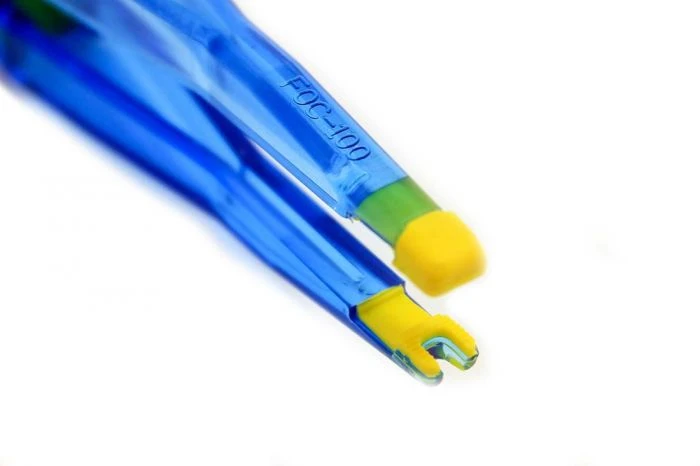

Contoured Notch for LC Connectors

During insertion of LC connectors, the patented notch on one tip prevents the latch from being depressed, ensuring positive latching of the connector. During removal, the straight tip depresses the latch and frees the connector from its port.

Non-locking Design

The patented tool jaws are spring-loaded and will not lock onto the connector, thus avoiding damage to the connector and cable if the tool is dropped during use.

Ease of Visibility and Storage

Made of attractive bright yellow and translucent blue material, the tool is easily located if dropped or misplaced in a poorly lit environment. It fits conveniently in a holster that mounts to a standard tool belt; the holster is available from Cable Prep.

Non-conducting Material

The tool is made of non-conducting, dielectric plastic materials that eliminate the potential for shorts during use.

Equipment Damage Mitigation

Using the FOCUS tool ensures proper snap fits and reduces the risk of damage to connector bodies, ferrule tips, sleeves, cables, and panel ports that might otherwise result from forced insertions and removals.

Durability

With the exception of an easily replaced flashlight, the tool can be dropped from a height of ten feet without damage. It can be used in indoor and outdoor environments and has an operating temperature range of -4°C to +9°C.
