220V 24 Ports Connector Heat Cure Oven With Thermometer (FC/ST/D4/SMA/SC) 4011-0000 Included

220V 24 Ports Connector Heat Cure Oven with Thermometer (FC/ST/D4/SMA/SC) 4011-0000 Included.

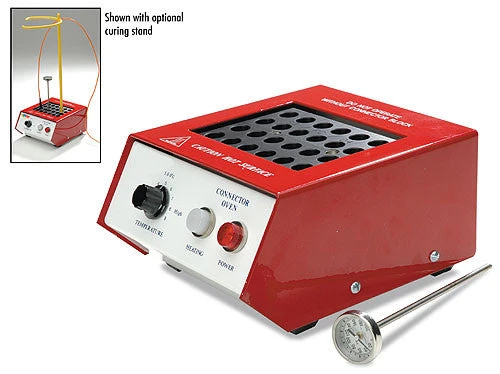

This connector heat cure oven features thermostat control dial, heat “on” light indicator and power “on” light indicator. The temperature control allows proper cure of several types of epoxy.

The oven comes with a standard heat cure block and a thermometer. The standard heat cure block can hold up to 24 ST, FC, SC, D4, or SMA connectors. The block is designed to provide even heat distribution and minimize connector heat loss. The temperature control allows proper cure of several types of epoxy.

Heat cure blocks for other connectors can be ordered separately such as P/N 9091 for MU/LC, P/N 9091 for MTP and P/N 9090 Universal for FDDI, ST, FC, SC, D4, Biconic and SMA.

Also available is the

optional 9451S Cable Support

. This cable support provides easy placement of cable cords during the heat curing process. This Cable Support needs to be ordered separately.

Oven Specifications:

• Temperature Range: room temperature to +16°C
• Temperature Control Precision: +/-°C
• Power Supply: 220V
• Working Current: 0.55amp
• Working Watts: 132
• Hz: 50/60
• Fuse Amps: 0.8amp
• Dimension(inch): 3.25(height), 5.30(width), 6.75(depth)
• Weight: 3.8lbs
• Power Cord: 6 feet
